Showing 120–130 of 206 results

Bosch B10R. Width: 12.5" (318 mm), Depth: 2.99" (76 mm), Height: 14" (356 mm)

The PVA-4R24 24 Zone Router is a zone extension for the PAVIRO system. The PVA-4R24 adds 24 zones 20 GPIs 24 GPOs and 2 control relays to the system and is controlled and supervised via the CAN bus by the PVA-4CR12 (Controller). Up to 20 external routers can be connected to one controller. One router can handle up to 4000 W speaker load. The maximum load of one zone is 500W.The zone indicator lights on the front indicate the current status of every zone:• Green: Zone in use for non emergency purpose• Red: Zone in use for emergency purpose• Yellow: Zone fault detected• Off: Zone in idle condition

The PVA-4CR12 controller is the central paging manager for the PAVIRO system. Eight local audio inputs can be switched to four audio outputs. A two channel message manager is integrated. The controller provides all the audio processing supervision and control functions for a complete PAVIRO system. A single controller supports up to 16 call stations and 492 paging zones. The controller is equipped with 12 zones 18 GPIs and 19 GPOs. One controller can handle up to 2000 W loudspeaker load. Additional zones and power can be added by using up to 20 external routers and 40 amplifiers with each 2 ✕ 500 W. The zone indicator lights on the front indicate the current status of every zone:

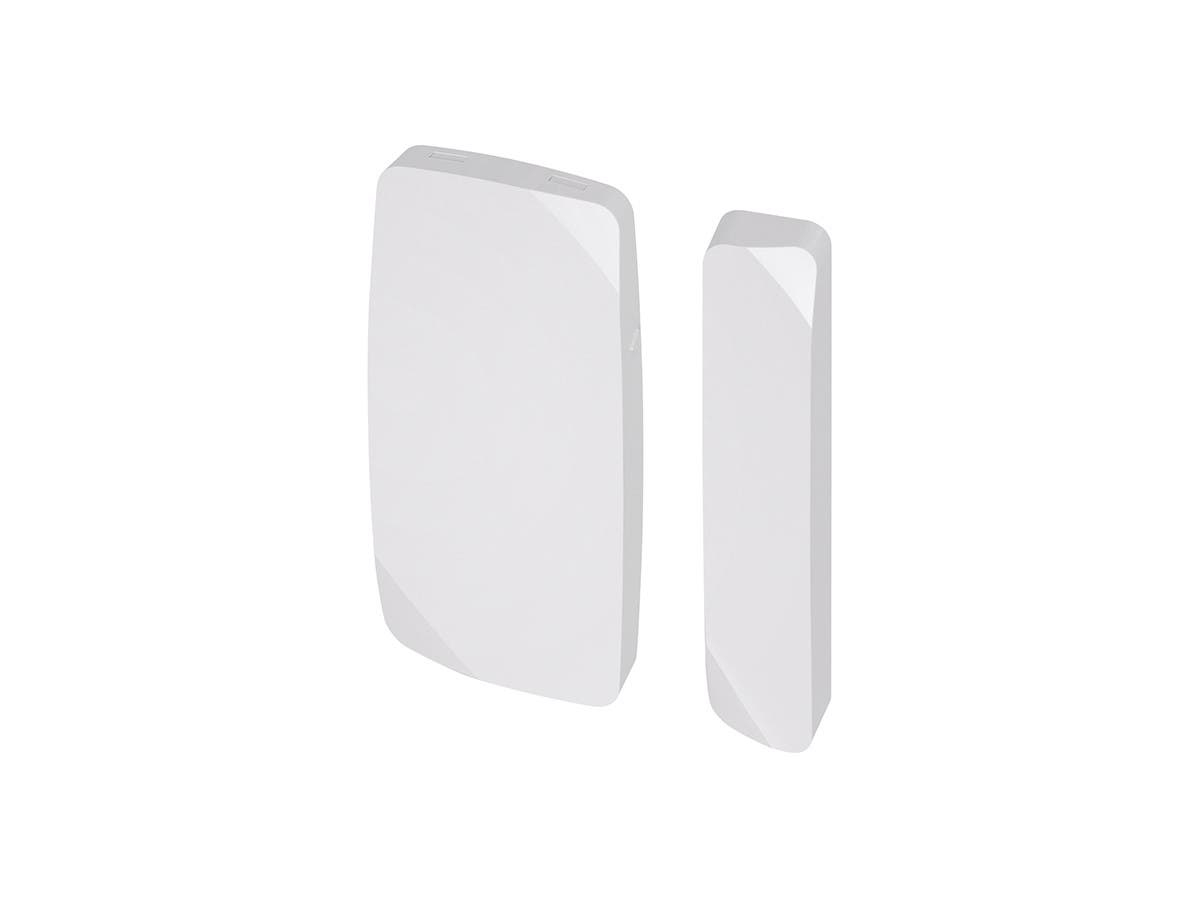

Bosch RFBT-A. Product color: Gray, RF transmission frequency: 433.42 MHz, Certification: UL, RCM, FCC, IC, ANATEL. Power source type: Battery. Width: 0.929" (23.6 mm), Depth: 1.92" (48.8 mm), Height: 6.07" (154.1 mm)

Tamper switch fits all enclosures
